LG LRM1250W 01 Large Parts List

*01

MANUAL,OWNERS LGE 3828W5A8203 Contact Us For Availability

View on Model

*02

MANUAL,SERVICE LGE 3828W5S5129 Contact Us For Availability

View on Model

*05

LGE 3850W1D092B LGE 3850W1D092B Contact Us For Availability

View on Model

*10

Box Backorder LGE 3890W3C448A $60.00

View on Model

50CZZH

0CZZW1H004P LG High Voltage Capacitor Backorder LGE 0CZZW1H004P $47.84

View on Model

50FZZA

3B74133Q LG Microwave Oven Main Inline Time D In Stock LGE 3B74133Q $5.57

View on Model

14026A

4026W2A016A LG Microwave Door Latch In Stock LGE 4026W2A016A $6.53

View on Model

24510L

4510W3L003A LG Microwave Lever Release Backorder LGE 4510W3L003A $6.53

View on Model

24970A

4B72023B LG Microwave Oven Door Button Spring Backorder LGE 4B72023B $5.06

View on Model

33052A

3052W1A004A LG Resin Cover Backorder LGE 3052W1A004A $6.53

View on Model

34930W

4930W3B029A LG Wire Holder Backorder LGE 4930W3B029A $6.53

View on Model

35012A

5012W3A020C LG Insulator Backorder LGE 5012W3A020C $6.53

View on Model

35889A

ROTATING RING ASSEMBLY LGE 5889W1A003B Contact Us For Availability

View on Model

36549S

6549W1S011B LG Microwave Oven Synchronous Tur In Stock LGE 6549W1S011B $21.47

View on Model

43501A

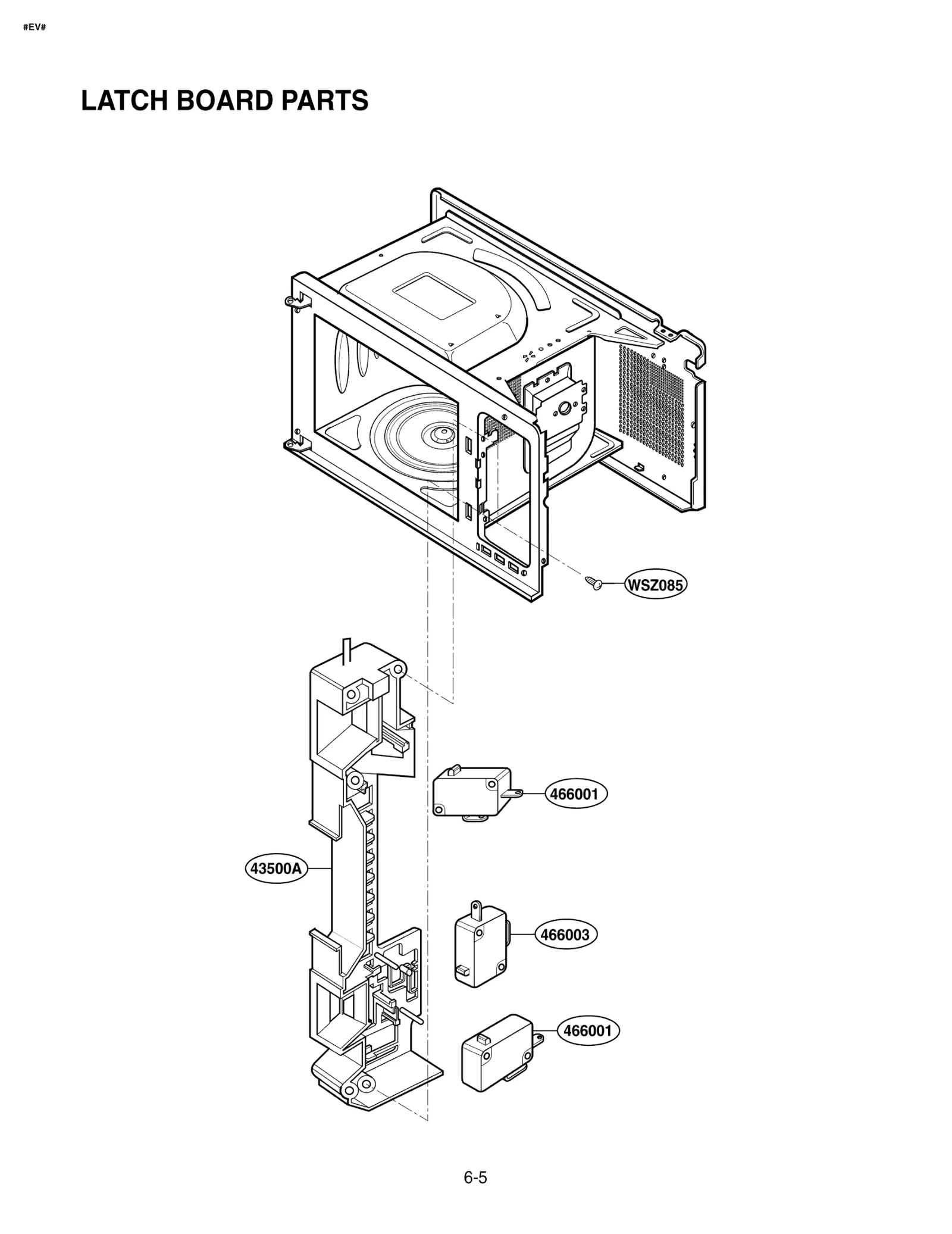

BOARD ASSEMBLY,LATCH LGE 3501W1A051A Contact Us For Availability

View on Model

54810C

4810W4C003B LG Capacitor Bracket Backorder LGE 4810W4C003B $6.53

View on Model

54974S

GUIDE,SUCTION LGE 4974W0A008A Contact Us For Availability

View on Model

55262A

5208W1A017A LG Duct Backorder LGE 5208W1A017A $10.38

View on Model

55900A

5900W1A004A LG Fan Propeller Backorder LGE 5900W1A004A $6.53

View on Model

56170D

Linear Trans LGE 6170W1D077J Contact Us For Availability

View on Model

56201A

6201W1A014A LG Noise Filter Assembly Backorder LGE 6201W1A014A $9.54

View on Model

56324A

6324W1A001L LG Microwave Oven Magnetron In Stock LGE 6324W1A001L $109.79

View on Model

56411A

POWER CORD ASSEMBLY LGE 6411W1A019S Contact Us For Availability

View on Model

56549F

MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability

View on Model

56851D

6851W1A002A LG Cable Assembly (Goldstar) Backorder LGE 6851W1A002A $10.38

View on Model

56912B

6912W3B002L LG Microwave Oven Incandescent Li Backorder LGE 6912W3B002L $10.38

View on Model

56930V

6930WRT002F LG Thermostat Assembly Backorder LGE 6930WRT002F $9.03

View on Model

63302A

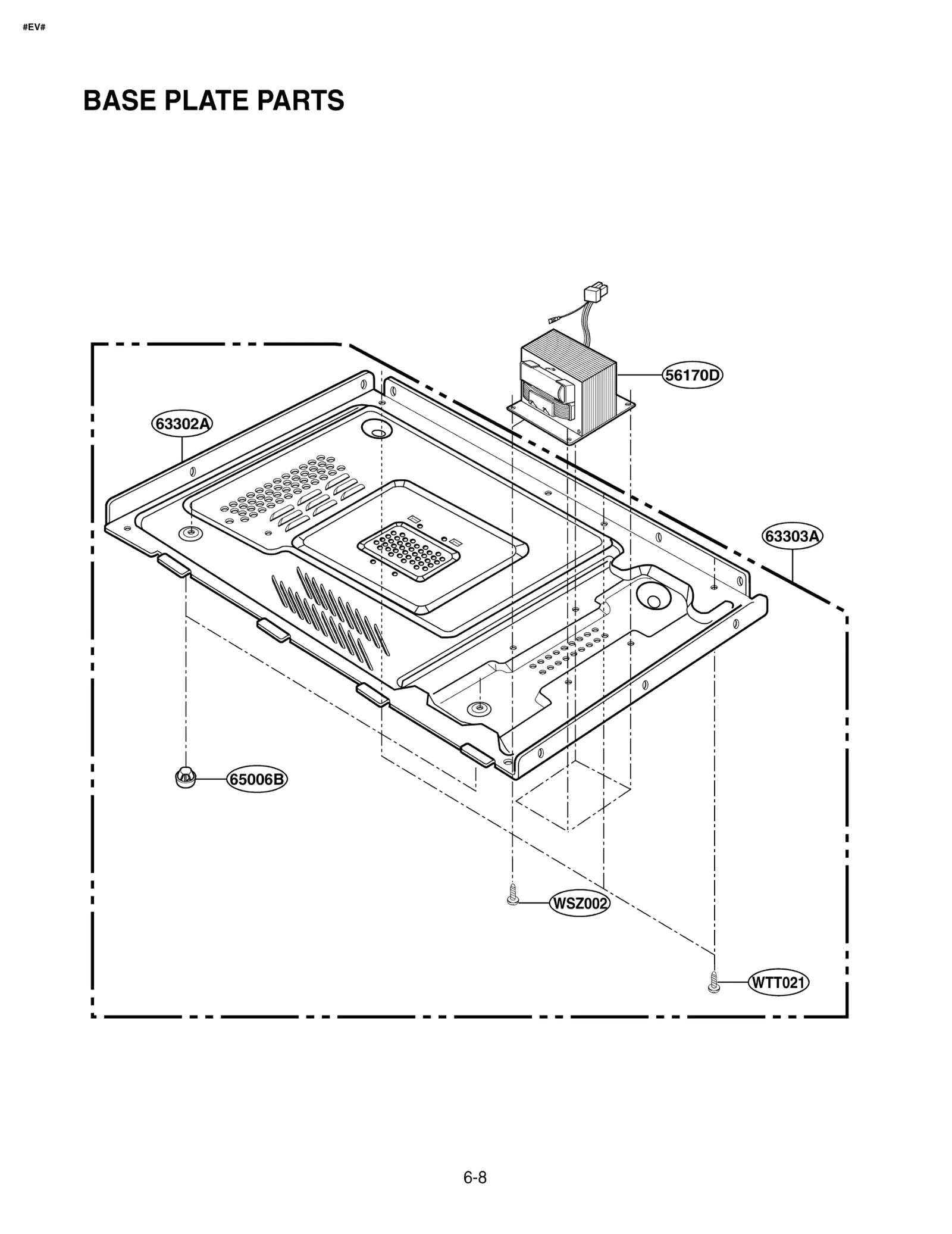

BASE PLATE LGE 3302W0A036B Contact Us For Availability

View on Model

63303A

BASE PLATE ASSEMBLY LGE 3303W0A019B Contact Us For Availability

View on Model

65006B

5006W3A019A LG Cap-Base Plate Backorder LGE 5006W3A019A $6.53

View on Model

250201

BUTTON LGE 5020W0A001B Contact Us For Availability

View on Model

466001

6600W1K001D LG Microwave Oven Door Micro Swit Backorder LGE 6600W1K001D $11.42

View on Model

466003

6600W1K003C LG Switch Backorder LGE 6600W1K003C $5.69

View on Model

568771

HARNESS LGE 6877W1A474H Contact Us For Availability

View on Model

948501

3B72244T LG Damper Backorder LGE 3B72244T $6.53

View on Model

948503

3B72244G LG Damper Backorder LGE 3B72244G $6.53

View on Model

BZ1

BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability

View on Model

RY2

RELAY LGE 6920W5A009A Contact Us For Availability

View on Model

WEB001

1EBF0402494 LG TAPTITE Screw Backorder LGE 1EBF0402494 $6.53

View on Model

WSZ002

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.53

View on Model

WSZ085

4B70188C LG Customized Screw Backorder LGE 4B70188C $6.53

View on Model

WTT021

1TTL0402418 LG Microwave Tapping Screw Backorder LGE 1TTL0402418 $5.06

View on Model

WTT028

1TTL0402818 LG Oven Microwave Tapping Screw Backorder LGE 1TTL0402818 $6.53

View on Model

WTT037

1TTL0403818 LG Tapping Screw Backorder LGE 1TTL0403818 $6.53

View on Model
